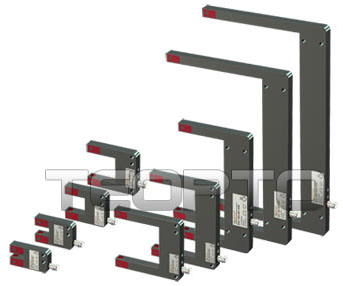

BGL系列
对射光束一体的槽型光电传感器
坚固铝氧化结构,M8插件输出或插件连接线输出
|

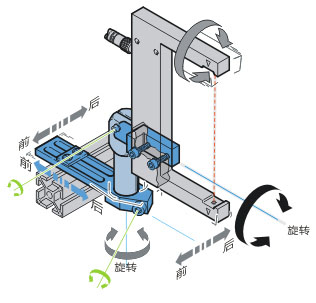

| 选型指导 | 接线图 | 使用示意 | 应用案例 | 安装示意图 |
 槽宽为5mm |
槽宽为10mm |
槽宽为20mm |
槽宽为30mm |
槽宽为50mm |
| 槽宽为80mm |
槽宽为120mm |
槽宽为180mm |
槽宽为220mm |

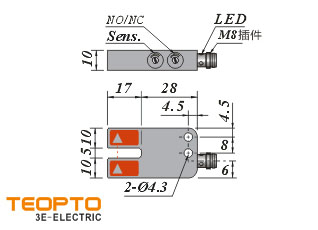

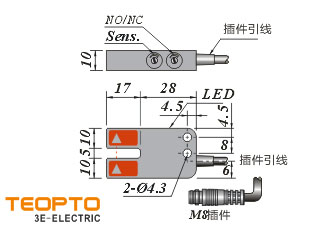

1、检测槽宽为5mm的选型表 (5mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 5A-002-S49 | ||
| PNP | BGL 5A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 5A-004-S49 | ||
| PNP | BGL 5A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 5A-006-S49 | ||
| PNP | BGL 5A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 5A-002-S50 | ||
| PNP | BGL 5A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 5A-004-S50 | ||
| PNP | BGL 5A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 5A-006-S50 | ||
| PNP | BGL 5A-005-S50 | ||
检测槽宽为5mm的技术指标 (5mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 5mm | 5mm | 5mm |
| 分辨率 Resolution |
0.3mm
|
0.3mm | |
| 回差 Hysteresis | 0.1mm | 0.1mm | |
| 重复精度 Repeatability |
0.02mm
|
0.02mm | |
|

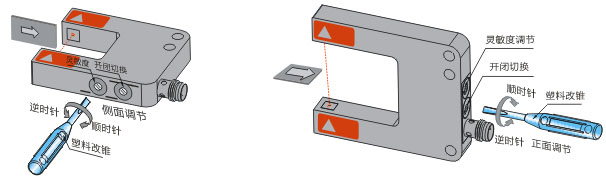

灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

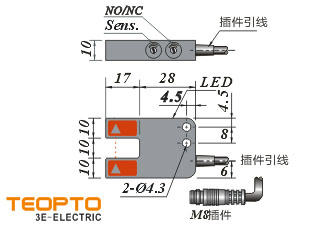

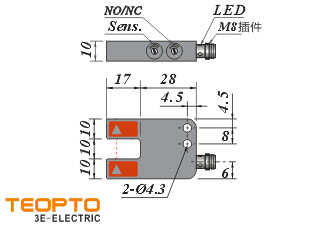

2、检测槽宽为10mm的选型表 (10mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 10A-002-S49 | ||
| PNP | BGL 10A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 10A-004-S49 | ||
| PNP | BGL 10A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 10A-006-S49 | ||
| PNP | BGL 10A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 10A-002-S50 | ||
| PNP | BGL 10A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 10A-004-S50 | ||
| PNP | BGL 10A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 10A-006-S50 | ||
| PNP | BGL 10A-005-S50 | ||
检测槽宽为10mm的技术指标 (10mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 10mm | 10mm | 10mm |
| 分辨率 Resolution |
0.3mm
|
0.3mm | |
| 回差 Hysteresis | 0.1mm | 0.1mm | |
| 重复精度 Repeatability |
0.02mm
|
0.02mm | |
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

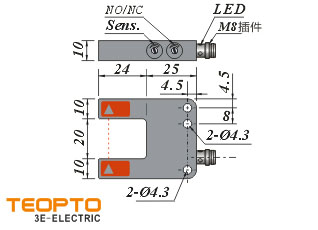

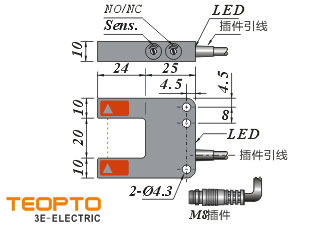

3、检测槽宽为20mm的选型表 (20mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 20A-002-S49 | ||
| PNP | BGL 20A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 20A-004-S49 | ||
| PNP | BGL 20A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 20A-006-S49 | ||
| PNP | BGL 20A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 20A-002-S50 | ||
| PNP | BGL 5A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 20A-004-S50 | ||
| PNP | BGL 20A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 20A-006-S50 | ||
| PNP | BGL 20A-005-S50 | ||
检测槽宽为20mm的技术指标 (20mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 20mm | 20mm | 20mm |
| 分辨率 Resolution |
0.3mm
|
0.3mm | |
| 回差 Hysteresis | 0.1mm | 0.1mm | |
| 重复精度 Repeatability |
0.02mm
|
0.02mm | |
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

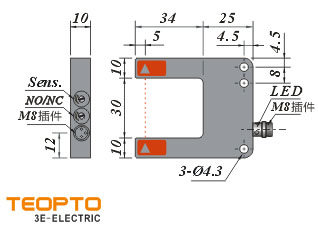

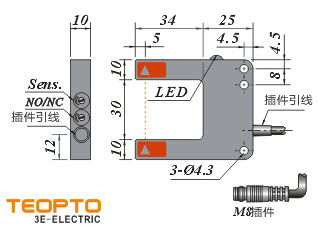

4、检测槽宽为30mm的选型表 (30mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 30A-002-S49 | ||
| PNP | BGL 30A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 30A-004-S49 | ||
| PNP | BGL 30A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 30A-006-S49 | ||
| PNP | BGL 30A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 30A-002-S50 | ||
| PNP | BGL 30A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 30A-004-S50 | ||
| PNP | BGL 30A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 30A-006-S50 | ||
| PNP | BGL 30A-005-S50 | ||
检测槽宽为30mm的技术指标 (30mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 30mm | 30mm | 30mm |
| 分辨率 Resolution |
0.3mm
|
0.06mm | 0.3mm |
| 回差 Hysteresis | 0.1mm | 0.01mm | 0.1mm |
| 重复精度 Repeatability |
0.02mm
|
0.015mm | 0.02mm |
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

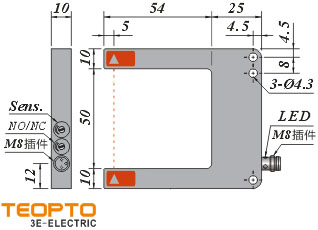

5、检测槽宽为50mm的选型表 (50mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 50A-002-S49 | ||
| PNP | BGL 50A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 50A-004-S49 | ||
| PNP | BGL 50A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 50A-006-S49 | ||
| PNP | BGL 50A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 50A-002-S50 | ||
| PNP | BGL 50A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 50A-004-S50 | ||
| PNP | BGL 50A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 50A-006-S50 | ||
| PNP | BGL 50A-005-S50 | ||
检测槽宽为50mm的技术指标 (50mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 50mm | 50mm | 50mm |
| 分辨率 Resolution |
0.5mm
|
0.1mm |
0.5mm
|
| 回差 Hysteresis | 0.15mm | 0.01mm | 0.15mm |
| 重复精度 Repeatability |
0.04mm
|
0.015mm |
0.04mm
|
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

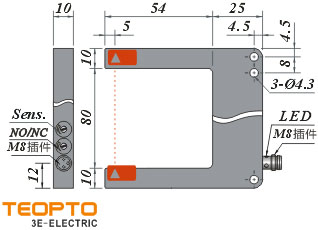

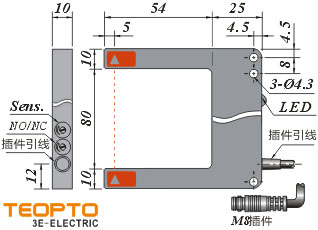

6、检测槽宽为80mm的选型表 (80mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 80A-002-S49 | ||
| PNP | BGL 80A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 80A-004-S49 | ||
| PNP | BGL 80A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 80A-006-S49 | ||
| PNP | BGL 80A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 80A-002-S50 | ||
| PNP | BGL 80A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 80A-004-S50 | ||
| PNP | BGL 80A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 80A-006-S50 | ||
| PNP | BGL 80A-005-S50 | ||
检测槽宽为80mm的技术指标 (80mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 80mm | 80mm | 80mm |
| 分辨率 Resolution |
0.5mm
|
0.2mm |
0.5mm
|
| 回差 Hysteresis | 0.2mm | 0.01mm | 0.2mm |
| 重复精度 Repeatability |
0.06mm
|
0.015mm |
0.06mm
|
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

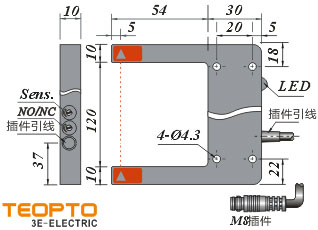

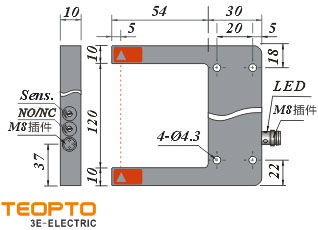

7、检测槽宽为120mm的选型表 (120mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 120A-002-S49 | ||
| PNP | BGL 120A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 120A-004-S49 | ||
| PNP | BGL 120A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 120A-006-S49 | ||
| PNP | BGL 120A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 120A-002-S50 | ||
| PNP | BGL 120A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 120A-004-S50 | ||
| PNP | BGL 120A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 120A-006-S50 | ||
| PNP | BGL 120A-005-S50 | ||
检测槽宽为120mm的技术指标 (120mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 120mm | 120mm | 120mm |
| 分辨率 Resolution |
0.8mm
|
0.3mm |
0.8mm
|
| 回差 Hysteresis | 0.2mm | 0.01mm | 0.2mm |
| 重复精度 Repeatability |
0.08mm
|
0.015mm |
0.08mm
|
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

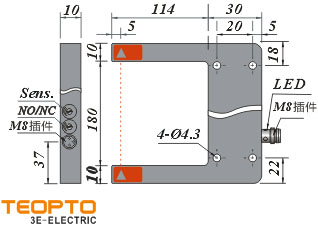

8、检测槽宽为180mm的选型表 (180mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 180A-002-S49 | ||
| PNP | BGL 180A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 180A-004-S49 | ||
| PNP | BGL 180A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 180A-006-S49 | ||
| PNP | BGL 180A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 180A-002-S50 | ||
| PNP | BGL 180A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 180A-004-S50 | ||
| PNP | BGL 180A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 180A-006-S50 | ||
| PNP | BGL 180A-005-S50 | ||
检测槽宽为180mm的技术指标 (180mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 180mm | 180mm | 180mm |
| 分辨率 Resolution |
0.8mm
|
0.3mm |
0.8mm
|
| 回差 Hysteresis | 0.2mm | 0.01mm | 0.2mm |
| 重复精度 Repeatability |
0.08mm
|
0.015mm |
0.08mm
|
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||

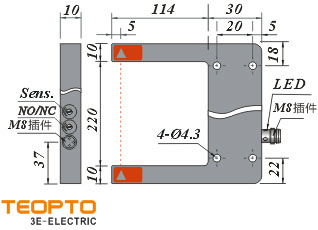

9、检测槽宽为220mm的选型表 (220mm Gap Sizes Products List)
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 220A-002-S49 | ||
| PNP | BGL 220A-001-S49 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 220A-004-S49 | ||
| PNP | BGL 220A-003-S49 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 220A-006-S49 | ||
| PNP | BGL 220A-005-S49 | ||
 |
 |
可见红光(Visible Red) | |
| 输出 | 型 号 | ||
| NPN | BGL 220A-002-S50 | ||
| PNP | BGL 220A-001-S50 | ||
| 激光(Laser) | |||
| 输出 | 型 号 | ||
| NPN | BGL 220A-004-S50 | ||
| PNP | BGL 220A-003-S50 | ||
| 红外光(Infrared) | |||
| 输出 | 型 号 | ||
| NPN | BGL 220A-006-S50 | ||
| PNP | BGL 220A-005-S50 | ||
检测槽宽为220mm的技术指标 (220mm Gap Sizes Technical parameters)
| 光源 Light source | 可见红光(Visible Red) | 激光(Laser) | 红外光(Infrared) |
| 槽宽 Gap sizes | 220mm | 220mm | 220mm |
| 分辨率 Resolution |
0.8mm
|
0.3mm |
0.8mm
|
| 回差 Hysteresis | 0.2mm | 0.01mm | 0.2mm |
| 重复精度 Repeatability |
0.08mm
|
0.015mm |
0.08mm
|
|
灵敏度调节Sensitivity adjustment
|
电位器 Potentiometer(270°)
|
||
| 光学透镜 Opto lens | PE | ||
|
外壳材料 Housing material
|
阳极氧化铝 Anodized aluminum
|
||
| 防护等级 Degree of protection | IP65 | ||
| 工作温度 Operating temperatu | -10...+60℃ | ||
| 工作电压 Operating voltage | 8-30VDC | ||
| 开关频率 Switching frequency | 2KHz | 2KHz | |
| 输出 Output |
PNPorNPN暗动/亮动切换(selectable light/dark operation)
|
||
|

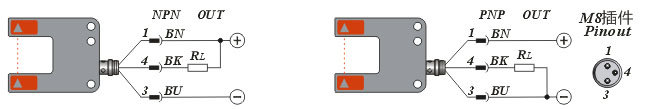

1:BN(Brown棕色,正极电源) 3:BU(Blue蓝色,负极) 4:BK(Black黑色,输出)
|
|
1：灵敏度调节(角度范围270°)用塑料改锥调节灵敏度电位器。 顺时针调节，灵敏度增大；逆时针调节,灵敏度减小。 2：常开/常闭切换(NO./NC.)顺时针调节到头为常闭;逆时针调节到头为常开;
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
